Mysql必读MySQL-MMM安装指南(Multi-Master Replication Manager for MySQL)
《Mysql必读MySQL-MMM安装指南(Multi-Master Replication Manager for MySQL)》要点：
本文介绍了Mysql必读MySQL-MMM安装指南(Multi-Master Replication Manager for MySQL)，希望对您有用。如果有疑问，可以联系我们。
MYSQL教程最基本的MMM安装必须至少需要2个数据库服务器和一个监控服务器下面要配置的MySQL Cluster环境包含四台数据库服务器和一台监控服务器,如下：
| function | ip | hostname | server id |
|---|---|---|---|
| monitoring host | 192.168.0.10 | mon | - |
| master 1 | 192.168.0.11 | db1 | 1 |
| master 2 | 192.168.0.12 | db2 | 2 |
| slave 1 | 192.168.0.13 | db3 | 3 |
| slave 2 | 192.168.0.14 | db4 | 4 |
MYSQL教程如果是个人学习安装,一下子找5台机器不太容易,可以虚拟机就可以完成.
MYSQL教程 配置完成后,使用下面的虚拟IP访问MySQL Cluster,他们通过MMM分配到不同的服务器.
| ip | role | description |
|---|---|---|
| 192.168.0.100 | writer | 应用程序应该连接到这个ip进行写操作 |
| 192.168.0.101 | reader | 应用程序应该链接到这些ip中的一个进行读操作 |
| 192.168.0.102 | reader | |
| 192.168.0.103 | reader | |
| 192.168.0.104 | reader |

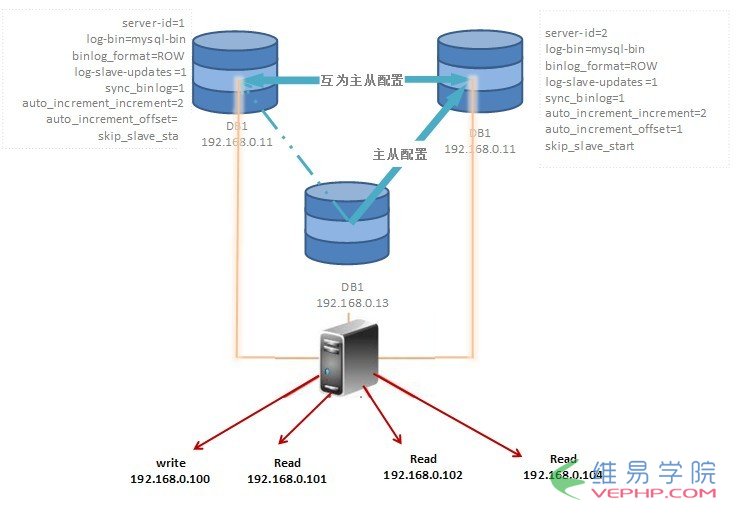

MYSQL教程结构图如下：
MYSQL教程2. Basic configuration of master 1
First we install MySQL on all hosts:
aptitude install mysql-serverThen we edit the configuration file /etc/mysql/my.cnf and add the following lines - be sure to use different server ids for all hosts:
server_id = 1
log_bin = /var/log/mysql/mysql-bin.log
log_bin_index = /var/log/mysql/mysql-bin.log.index
relay_log = /var/log/mysql/mysql-relay-bin
relay_log_index = /var/log/mysql/mysql-relay-bin.index
expire_logs_days = 10
max_binlog_size = 100M
log_slave_updates = 1
Then remove the following entry:
bind-address = 127.0.0.1Set to number of masters:
auto_increment_increment = 2Set to a unique, incremented number, less than auto_increment_increment, on each server
auto_increment_offset = 1Do not bind of any specific IP, use 0.0.0.0 instead:
bind-address = 0.0.0.0Afterwards we need to restart MySQL for our changes to take effect:
/etc/init.d/mysql restart
3. Create usersNow we can create the required users. We'll need 3 different users:
| function | description | privileges |
|---|---|---|
| monitor user | used by the mmm monitor to check the health of the MySQL servers | REPLICATION CLIENT |
| agent user | used by the mmm agent to change read-only mode, replication master, etc. | SUPER, REPLICATION CLIENT, PROCESS |
| relication user | used for replication | REPLICATION SLAVE |
GRANT REPLICATION CLIENT ON *.* TO 'mmm_monitor'@'192.168.0.%' IDENTIFIED BY 'monitor_password';
GRANT SUPER, REPLICATION CLIENT, PROCESS ON *.* TO 'mmm_agent'@'192.168.0.%' IDENTIFIED BY 'agent_password';
GRANT REPLICATION SLAVE ON *.* TO 'replication'@'192.168.0.%' IDENTIFIED BY 'replication_password';
MYSQL教程Note: We could be more restrictive here regarding the hosts from which the users are allowed to connect: mmm_monitor is used from 192.168.0.10. mmm_agent and replication are used from 192.168.0.11 - 192.168.0.14.
Note: Don't use a replication_password longer than 32 characters
MYSQL教程4. Synchronisation of data between both databases
MYSQL教程I'll assume that db1 contains the correct data. If you have an empty database, you still have to syncronize the accounts we have just created.
First make sure that no one is altering the data while we create a backup.
(db1) mysql> FLUSH TABLES WITH READ LOCK;
MYSQL教程Then get the current position in the binary-log. We will need this values when we setup the replication on db2, db3 and db4.
(db1) mysql> SHOW MASTER STATUS;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000002 | 374 | | |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)
MYSQL教程DON'T CLOSE this mysql-shell. If you close it, the database lock will be removed. Open a second console and type:
MYSQL教程db1$ mysqldump -u root -p --all-databases > /tmp/database-backup.sql
MYSQL教程Now we can remove the database-lock. Go to the first shell:
MYSQL教程(db1) mysql> UNLOCK TABLES;Copy the database backup to db2, db3 and db4.
db1$ scp /tmp/database-backup.sql <user>@192.168.0.12:/tmp
db1$ scp /tmp/database-backup.sql <user>@192.168.0.13:/tmp
db1$ scp /tmp/database-backup.sql <user>@192.168.0.14:/tmp
MYSQL教程Then import this into db2, db3 and db4:
db2$ mysql -u root -p < /tmp/database-backup.sql
db3$ mysql -u root -p < /tmp/database-backup.sql
db4$ mysql -u root -p < /tmp/database-backup.sql
MYSQL教程Then flush the privileges on db2, db3 and db4. We have altered the user-table and mysql has to reread this table.
(db2) mysql> FLUSH PRIVILEGES;
(db3) mysql> FLUSH PRIVILEGES;
(db4) mysql> FLUSH PRIVILEGES;
MYSQL教程On debian and ubuntu, copy the passwords in /etc/mysql/debian.cnf from db1 to db2, db3 and db4. This password is used for starting and stopping mysql.
Both databases now contain the same data. We now can setup replication to keep it that way.
Note: Import just only add records from dump file. You should drop all databases before import dump file.
MYSQL教程5. Setup replication
MYSQL教程Configure replication on db2, db3 and db4 with the following commands:
(db2) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
(db3) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
(db4) mysql> CHANGE MASTER TO master_host='192.168.0.11', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
MYSQL教程Please insert the values return by “show master status” on db1 at the <file> and <position> tags.
Start the slave-process on all 3 hosts:
(db2) mysql> START SLAVE;
(db3) mysql> START SLAVE;
(db4) mysql> START SLAVE;
MYSQL教程Now check if the replication is running correctly on all hosts:
(db2) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
(db3) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
(db4) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.11
Master_User: replication
Master_Port: 3306
Connect_Retry: 60
…
MYSQL教程Now we have to make db1 replicate from db2. First we have to determine the values for master_log_file and master_log_pos:
(db2) mysql> SHOW MASTER STATUS;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000001 | 98 | | |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)
MYSQL教程Now we configure replication on db1 with the following command:
(db1) mysql> CHANGE MASTER TO master_host = '192.168.0.12', master_port=3306, master_user='replication',
master_password='replication_password', master_log_file='<file>', master_log_pos=<position>;
MYSQL教程Now insert the values return by “show master status” on db2 at the <file> and <position> tags.
MYSQL教程Start the slave-process:
MYSQL教程(db1) mysql> START SLAVE;Now check if the replication is running correctly on db1:
(db1) mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.0.12
Master_User: <replication>
Master_Port: 3306
Connect_Retry: 60
…
MYSQL教程Replication between the nodes should now be complete. Try it by inserting some data into both db1 and db2 and check that the data will appear on all other nodes.
MYSQL教程6. Install MMM
MYSQL教程Create user
Optional: Create user that will be the owner of the MMM scripts and configuration files. This will provide an easier method to securely manage the monitor scripts.
MYSQL教程useradd --comment "MMM Script owner" --shell /sbin/nologin mmmdMonitoring host
First install dependencies:
aptitude install liblog-log4perl-perl libmailtools-perl liblog-dispatch-perl libclass-singleton-perl libproc-daemon-perl libalgorithm-diff-perl libdbi-perl libdbd-mysql-perl
MYSQL教程Then fetch the latest mysql-mmm-common*.deb and mysql-mmm-monitor*.deb and install it:
MYSQL教程dpkg -i mysql-mmm-common_*.deb mysql-mmm-monitor*.deb
MYSQL教程Database hosts
On Ubuntu First install dependencies:
MYSQL教程aptitude install liblog-log4perl-perl libmailtools-perl liblog-dispatch-perl iproute libnet-arp-perl libproc-daemon-perl libalgorithm-diff-perl libdbi-perl libdbd-mysql-perlThen fetch the latest mysql-mmm-common*.deb and mysql-mmm-agent*.deb and install it:
MYSQL教程dpkg -i mysql-mmm-common_*.deb mysql-mmm-agent_*.debOn RedHat
MYSQL教程yum install -y mysql-mmm-agentThis will take care of all the dependencies, which may include:
MYSQL教程Installed:
MYSQL教程mysql-mmm-agent.noarch 0:2.2.1-1.el5
MYSQL教程Dependency Installed:
libart_lgpl.x86_64 0:2.3.17-4
mysql-mmm.noarch 0:2.2.1-1.el5
perl-Algorithm-Diff.noarch 0:1.1902-2.el5
perl-DBD-mysql.x86_64 0:4.008-1.rf
perl-DateManip.noarch 0:5.44-1.2.1
perl-IPC-Shareable.noarch 0:0.60-3.el5
perl-Log-Dispatch.noarch 0:2.20-1.el5
perl-Log-Dispatch-FileRotate.noarch 0:1.16-1.el5
perl-Log-Log4perl.noarch 0:1.13-2.el5
perl-MIME-Lite.noarch 0:3.01-5.el5
perl-Mail-Sender.noarch 0:0.8.13-2.el5.1
perl-Mail-Sendmail.noarch 0:0.79-9.el5.1
perl-MailTools.noarch 0:1.77-1.el5
perl-Net-ARP.x86_64 0:1.0.6-2.1.el5
perl-Params-Validate.x86_64 0:0.88-3.el5
perl-Proc-Daemon.noarch 0:0.03-1.el5
perl-TimeDate.noarch 1:1.16-5.el5
perl-XML-DOM.noarch 0:1.44-2.el5
perl-XML-Parser.x86_64 0:2.34-6.1.2.2.1
perl-XML-RegExp.noarch 0:0.03-2.el5
rrdtool.x86_64 0:1.2.27-3.el5
rrdtool-perl.x86_64 0:1.2.27-3.el5
MYSQL教程Configure MMM
MYSQL教程All generic configuration-options are grouped in a separate file called /etc/mysql-mmm/mmm_common.conf. This file will be the same on all hosts in the system:
active_master_role writer
MYSQL教程<host default>
cluster_interface eth0
pid_path /var/run/mmmd_agent.pid
bin_path /usr/lib/mysql-mmm/
replication_user replication
replication_password replication_password
agent_user mmm_agent
agent_password agent_password
</host>
<host db1>
ip 192.168.0.11
mode master
peer db2
</host>
<host db2>
ip 192.168.0.12
mode master
peer db1
</host>
<host db3>
ip 192.168.0.13
mode slave
</host>
<host db4>
ip 192.168.0.14
mode slave
</host>
MYSQL教程<role writer>
hosts db1, db2
ips 192.168.0.100
mode exclusive
</role>
<role reader>
hosts db1, db2, db3, db4
ips 192.168.0.101, 192.168.0.102, 192.168.0.103, 192.168.0.104
mode balanced
</role>
MYSQL教程Don't forget to copy this file to all other hosts (including the monitoring host).
MYSQL教程On the database hosts we need to edit /etc/mysql-mmm/mmm_agent.conf. Change “db1” accordingly on the other hosts:
include mmm_common.conf
this db1
MYSQL教程On the monitor host we need to edit /etc/mysql-mmm/mmm_mon.conf:
include mmm_common.conf
MYSQL教程<monitor>
ip 127.0.0.1
pid_path /var/run/mmmd_mon.pid
bin_path /usr/lib/mysql-mmm/
status_path /var/lib/misc/mmmd_mon.status
ping_ips 192.168.0.1, 192.168.0.11, 192.168.0.12, 192.168.0.13, 192.168.0.14
</monitor>
MYSQL教程<host default>
monitor_user mmm_monitor
monitor_password monitor_password
</host>
MYSQL教程debug 0
MYSQL教程ping_ips are some ips that are pinged to determine whether the network connection of the monitor is ok. I used my switch (192.168.0.1) and the four database server.
MYSQL教程
7. Start MMM
MYSQL教程
MYSQL教程Start the agents
(On the database hosts)
MYSQL教程Debian/Ubuntu
Edit /etc/default/mysql-mmm-agent to enable the agent:
MYSQL教程ENABLED=1Red Hat
RHEL/Fedora does not enable packages to start at boot time per default policy, so you might have to turn it on manually so the agents will start automatically when server is rebooted:
MYSQL教程chkconfig mysql-mmm-agent onThen start it:
MYSQL教程/etc/init.d/mysql-mmm-agent startStart the monitor
(On the monitoring host) Edit /etc/default/mysql-mmm-monitor to enable the monitor:
MYSQL教程ENABLED=1Then start it:
MYSQL教程/etc/init.d/mysql-mmm-monitor start
MYSQL教程Wait some seconds for mmmd_mon to start up. After a few seconds you can use mmm_control to check the status of the cluster:
mon$ mmm_control show
db1(192.168.0.11) master/AWAITING_RECOVERY. Roles:
db2(192.168.0.12) master/AWAITING_RECOVERY. Roles:
db3(192.168.0.13) slave/AWAITING_RECOVERY. Roles:
db4(192.168.0.14) slave/AWAITING_RECOVERY. Roles:
MYSQL教程Because its the first startup the monitor does not know our hosts, so it sets all hosts to state AWAITING_RECOVERY and logs a warning message:
mon$ tail /var/log/mysql-mmm/mmm_mon.warn
…
2009/10/28 23:15:28 WARN Detected new host 'db1': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db1' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db2': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db2' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db3': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db3' to switch it online.
2009/10/28 23:15:28 WARN Detected new host 'db4': Setting its initial state to 'AWAITING_RECOVERY'. Use 'mmm_control set_online db4' to switch it online.
MYSQL教程Now we set or hosts online (db1 first, because the slaves replicate from this host):
mon$ mmm_control set_online db1
OK: State of 'db1' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db2
OK: State of 'db2' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db3
OK: State of 'db3' changed to ONLINE. Now you can wait some time and check its new roles!
mon$ mmm_control set_online db4
OK: State of 'db4' changed to ONLINE. Now you can wait some time and check its new roles!
MYSQL教程参考：http://mysql-mmm.org/mmm2:guide
转载请注明本页网址：
http://www.vephp.com/jiaocheng/2047.html
同类教程排行
- Mysql实例mysql报错：Deadl
- MYSQL数据库mysql导入sql文件
- MYSQL的UTF8MB4编码排序要用u
- MYSQL教程mysql自定义split
- 如何打造MySQL高可用平台
- Mysql必读MySQL中CLIENT_
- MYSQL数据库mysql常用字典表(完
- MYSQL创建表出错Tablespace
- Mysql应用MySql的Communi
- Mysql入门解决MySQL Sendi
- Mysql必读关于skip_name_r
- MYSQL数据库MySQL实现两张表数据
- Mysql实例使用dreamhost空间
- MYSQL数据库mysql 查询表中平均
- MYSQL教程mysql 跨表查询、更新
